Axial cross section Note that anatomical diagrams show the orientation of the skull facing down and imaging such as MR and CT show the skull looking up. It makes more sense to get use to the radiological presentation of anatomy.

Introduction

It is important to develop a good three dimensional knowledge of brain anatomy to aid the correlation between imaging related changes and the expected functional aspects expected in terms of clinical signs and vascular supply. Knowing the anatomy and shape of the lesion can also help explain aetiology. You need to develop an appreciation of what is also normal anatomy and the variations. Although we mostly use axial imaging it is important to look at coronal and sagittal sections. Once we know the parenchymal anatomy we need to know the vascular supply. Stroke is set of different clinical syndromes due to the location of the vascular pathology. Location and appearance can help to pinpoint the likely aetiology.

There are many beautifully illustrated textbooks of neuroanatomy available and it is important that you get one but here I am going to try and keep illustrations to keep ideas simple and concepts easy to follow. You need to basically know pathways, relationships and vascular supply. Most of the books I recommend are so beautifully illustrated that your eyes and visual cortex are quickly overloaded and the simple concepts are easily lost in an ocean of detail. Learn the basics schematic type concepts first and then these detailed diagrams will mean much more to you. So I make no apologies for my hand drawn and scanned images below and on other pages. There is I feel often a delight in the detail by those neuroanatomists who fail to communicate basic and easily memorable common themes. I have tried to make the anatomy memorable, it is. If you can navigate yourself around you local neighbourhood then you can do neuroanatomy.

Names are basically of Greek and some Latin origins. There is some terminology to learn. This is unavoidable. Do not be put off. There will be lots of repetition like learning a new language and if you stick with it you will do fine.

The Nervous system

The nervous system is divided into the central and peripheral nervous system. The central nervous system is composed of the brain, the spinal cord and the eye. The peripheral nervous system is formed by the 12 pairs of cranial nerves and 31 spinal nerves. Strokes can affect any part of the central nervous system. The basic cells of the CNS are the neurons and glia.

Learning objectives

  • Be able to label and name all imaging structures and their function
  • Be able to explain both the arterial supply and venous drainage of all areas (volumes) of the brain
  • Correlate topographical anatomy with imaging anatomy

Embryology

This is the part most people skip but there are some general memorable terms and structural concepts. Come back to this later on when you are comfortable with the terminology and have a basic idea how the structure is of the CNS. There are different terms used and I want to keep this as simple as possible but you may well come across it in the bigger neuroanatomy books.

    Prosencephlon(forebrain)
  • Telencephalon: Neocortex, Basal Ganglia, Amygdala, Hippocampus, Lateral Ventricles
  • Diencephalon: Thalamus, Hypothalamus, Epithalamus, Third ventricle
    Mesencephalon (midbrain)
  • Tectum, Tegmentum
  • Cerebral aqueduct
    Rhomboencephalon
  • Metencephalon: Cerebellum, Pons, 4th Ventricle
  • Myelencephalon: Medulla, Fourth ventricle

Cerebral cortex

Cerebral Architecture

Histologically the cerebral cortex is made up of a half centimeters of grey cells above a dense thick inner layer of white matter. The overall surface area is increased by the folds of sulci and gyri. The cortex can be seen to be composed of six layers of cells which vary in size and structure. Back in 1909 Brodmann produced a map of the cerebral cortex based on the micro-architecture of the cells and staining for Nissl substance which separates neurons from glial cells. This was before we had understanding of many of the functions of these areas and the system has stood the test of time. Other improvements have been developed by others. It is quite clear that anatomy is related to function. Cells in the cortex are arranged in a columnar structure and can this can be seen with microelectrode stimulation. Areas with similar function lie close together. For example Broca's area lies within the inferior region of the precentral motor cortex near to those areas that control voluntary movement of the lips, tongue, larynx and pharynx. Broca's produces the content of speech content and damage here leads to an expressive dysphasia. A lesion in the inferior area of the precentral motor cortex leads to dysarthria and facial weakness. Broca's discovery of dysphasia in a patient whose subsequent post mortem revealed a lesion due to syphilis in the area that became known as Broca's area was one of the key finding to suggest localization of function within the brain. The fibres from the cortex on their way to the brainstem pass down in a fan like bundle called the corona radiata to enter the internal capsule. Note that neuroanatomical diagrams are ‘upside down' compared with the normal appearance of imaging

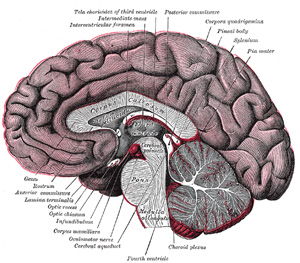

Lobar Anatomy

The Cerebral cortex is the most developed part of the human brain and often quoted as the most complicated system and poorly understood system known. The surface is the processing centre comprised of the outer layer of grey matter formed by neuronal cell bodies and their many connections. These are connected with neighbouring areas by axonal extensions which are myelinated and pass to other cortical areas or down and medially as long tracts to brainstem and spinal cord whereas others form circuits within the deep grey matter of the basal ganglia and other structure grey matter structures such as the thalamus or pass to other areas on the cortex. These fibres contain ascending (mainly sensory) and descending signals (mainly motor). The hemispheres surround the fluid filled ventricles.

There are two cerebral hemispheres separated by a longitudinal fissure and the falx cerebri. They are connected by the corpus callosum. Each cerebral hemisphere can be divided by certain sulci on the brain surface into lobes. The surface shows multiple folds - gyri and sulci which increase the amount of grey matter and cortical neurons (processing potential) making up the surface of the brain. It was Broca who showed that different parts of the brain had distinct functions in a patient with a syphilitic lesion in the precentral gyrus and dysphasia. Later others such as Brodmann mapped these areas on their cellular appearance. Let us look at the histology and then the lobes and their function.

The Cerebral cortex is the most developed part of the human brain and often quoted as the most complicated system and poorly understood system known. The surface is the processing centre comprised of the outer layer of grey matter formed by neuronal cell bodies and their many connections. These are connected with neighbouring areas by axonal extensions which are myelinated and pass to other cortical areas or down and medially as long tracts going to brainstem and spinal cord whereas others form circuits within the deep grey matter of the basal ganglia and other structure grey matter structures such as the thalamus or pass to other areas on the cortex. The hemispheres also contain fluid filled ventricles. The cerebral hemispheres can be divided by certain sulci on the brain surface into lobes and the folds increase the amount of grey matter making the surface of the brain. It was Broca who was one of the first to show that different parts of the brain had distinct functions. Others such as Brodmann mapped these areas. Let us look at the histology and then the lobes and their function.

Histologically the cerebral cortex is made up of a 5mm layer of grey cells above a dense thick inner layer of white matter. The overall surface area is increased by the folds of sulci and gyri. The cortex can be seen to be composed of six layers of cells which vary in size and structure. Back in 1909 Brodmann produced a map of the cerebral cortex based on the micro-architecture of the cells and staining for Nissl substance which separates neurons from glial cells. This was before we had understanding of many of the functions of these areas and the system has stood the test of time. Other improvements have been developed by others. It is quite clear that anatomy is related to function.

Cells in the cortex are arranged in a columnar structure and can this can be seen with microelectrode stimulation. Areas with similar function lie close together. For example Broca's area lies within the inferior region of the precentral motor cortex near to those areas that control voluntary movement of the lips, tongue, larynx and pharynx. Broca's produces the content of speech content and damage here leads to an expressive dysphasia. A lesion in the inferior area of the precentral motor cortex leads to dysarthria and facial weakness. Broca's discovery of dysphasia in a patient whose subsequent post mortem revealed a lesion due to syphilis in the area that became known as Broca's area was one of the key finding to suggest localization of function within the brain. The fibres from the cortex on their way to the brainstem pass down in a fan like bundle called the corona radiata to enter the internal capsule.

Lobar Anatomy

The Cerebral cortex is the most developed part of the human brain and often quoted as the most complicated system and poorly understood system known. The surface is the processing centre comprised of the outer layer of grey matter formed by neuronal cell bodies and their many connections. These are connected with neighboring areas by axonal extensions which are myelinated and pass to other cortical areas or down and medially as long tracts to brainstem and spinal cord whereas others form circuits within the deep grey matter of the basal ganglia and other structure grey matter structures such as the thalamus or pass to other areas on the cortex. These fibres contain ascending (mainly sensory) and descending signals (mainly motor). The hemispheres surround the fluid filled ventricles. The cerebral hemispheres can be divided by certain sulci on the brain surface into lobes. The surface shows multiple folds - gyri and sulci which increase the amount of grey matter and cortical neurons (processing potential) making up the surface of the brain. It was Broca who showed that different parts of the brain had distinct functions in a patient with a syphilitic lesion in the precentral gyrus and dysphasia. Later others such as Brodmann mapped these areas on their cellular appearance. Let us look at the histology and then the lobes and their function.

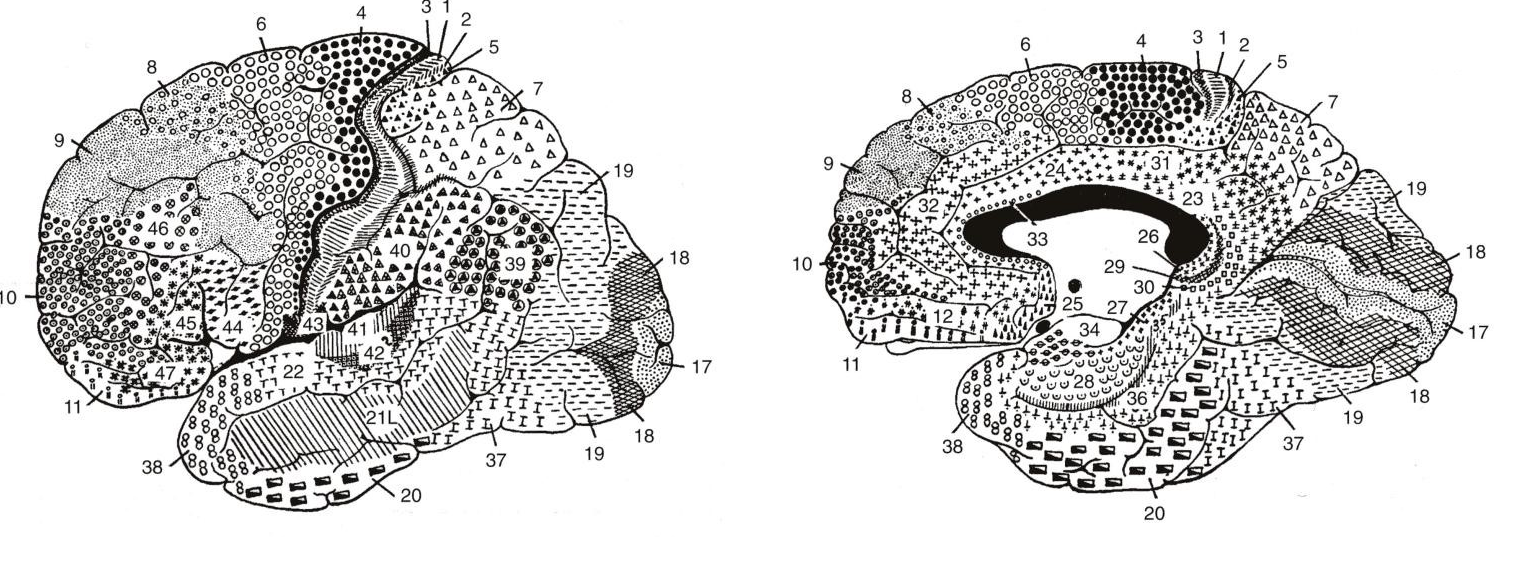

Important surface sulci to identify

  • Central sulcus: separates frontal and parietal lobes where the primary motor cortex and primary sensory cortex like closely together
  • Lateral/Sylvian sulcus (fissure) forms the upper limit of the temporal lobe
  • Parieto-occipital sulcus
  • Cingulate sulcus
  • Preoccipital notch

For the stroke physician you need to appreciate these anatomical markers on imaging so that you can name the borders of the lobes of the brain on axial, coronal and sagittal planes.

Frontal lobe

The frontal lobe starts at the central sulcus and forwards. Inferiorly limited by the lateral (sylvian) sulcus. The primary motor cortex (MC) lies on the pre-central gyrus. Input is received from the thalamus and cerebellum and is the main source of all conscious movement. Representation on the lateral surface is hand superiorly and then below that face and tongue and larynx and pharynx. The trunk and leg are represented on the medial inner surface. The Premotor cortex (PMC) lies slightly anterior to MC and is also concerned with voluntary movement. Frontal eye fields lies in front of the PMC and is involved in eye movement. Broca's area (dominant hemisphere) lies inferiorly close to the primary motor areas for mouth, oral cavity and pharynx and larynx. Broca's is involved in generating the language content of speech. Damage here causes an expressive dysphasia. The Frontal association cortex gets input from thalamus, limbic system, other cortical areas and is involved in intellectual ability. The paracentral lobule found on the medial surface involved with urinary continence.

Parietal lobe

The parietal lobe lies behind the central sulcus as far back as the limit of the sylvian (lateral) sulcus and the parietoccipital sulcus. It contains the Primary sensory cortex on the post central gyrus with representation of hand and face laterally and leg on the inner superior medial section. Areas of high sensory input such as face and hand are given proportionally large representations. All conscious sensation is perceived here. Parietal association cortex mostly involved with integration of sensory input and processing. Input mainly from the thalamus. Deep fibres carry the optic radiations from lateral geniculate ganglion from the superior retina

Temporal lobe

Temporal lobe lies below the sylvian (lateral) fissure as far back as a line dropped from the end of the sylvian fissure. Contains the Auditory cortex lies in the superior temporal gyrus on lateral surface and is concerned with input from medial geniculate body. Temporal association cortex integrates auditory stimulus and language comprehension (dominant hemisphere) Damage here can cause a receptive dysphasia. Memory processing and recall. Deep fibres carry the optic radiations from the lateral geniculate body from the lower retina

Occipital lobe

Occipital lobe lies behind the parietal and temporal lobes. Calcarine cortex primarily deals with vision and visual processing. The optic radiations pass back from the lateral geniculate body of the ipsilateral thalamus. Sight from the right side of ones world goes to left occipital cortex. Occipital association areas concerned with image processing. There is a high density of neurons. The main centre for processing is within the calcarine sulcus. Upper fibres from the upper retina pass to the upper calcarine sulcus called the cuneus. Lower fibres pass to the lower part of the sulcus, the lingual gyrus from the lower retina. The visual area is called Brodmann 17 area.

Insular cortex

This area of grey matter is seen if one parts the lips of the lateral sulcus and is known as the insula. It is closely associated with the middle cerebral artery which passes on the surface. Its functions are poorly understood and possibly involve belching, salivation, gastric movements and vomiting. It may play a role in addiction. The insula certainly is discussed in early stroke imaging 'loss of the insular ribbon sign'.

Visual Pathway

Embryologically the eye is an outgrowth from the diencephalon. The Optic nerve is formed at the rear pole of the eye exiting medially at the blind spot. It is not a peripheral nerve but a nerve tract and myelinated by oligodendrocytes rather than schwann cells. As such it is not vulnerable to peripheral demyelinating neuropathies but can be affected by central demyelinating diseases eg MS. It leaves the orbit through the optic canal passing medially. At the optic chiasma the nasal retinal fibres cross over and temporal retinal fibres stay on the outside. Fibres cross over at the optic chiasma above the pituitary fossa. The tract passes back send most fibres to the lateral geniculate body as well as ipsilateral pretectal nuclei and superior colliculus. On leaving the lateral geniculate body the tract splits into two tracts with an inferior "Meyer's loop" which passes forwards before radiating posteriorly through the temporal lobe along the inferior horn of the lateral ventricle and then to the lower bank of the calcarine sulcus of the occipital cortex and carries information from the inferior retina. The other fibres loop back more directly through the parietal lobe through the retrolenticular part of the internal capsule before passing on to the occipital lobe particularly the upper bank of the calcarine sulcus.

Cavernous sinus

A large venous structure carrying blood from the face indeed the most complex venous plexus in the body. Receives blood from inferior and superior ophthalmic veins and anterior temporal veins and drains into the superior and inferior petrosal sinuses. Pathology includes thrombosis which may be due to localised infection or a prothrombotic disorder or a caroticocavernous fistula with pulsatile exophthalmos. It is also a site for meningiomas.

Contents

  • The siphon part of Internal carotid artery lies on either side just laterally to the pituitary
  • Lateral wall contains the following nerves from top to bottom : III, IV, VI, Va,Vb
  • Postganglionic sympathetic fibres on their way to the orbit to dilate pupil and raise eyelid

Internal Capsule

This is a right angled shaped tract which carries various ascending and descending myelinated fibres from the cerebral cortex to the thalamus, brain stem and cerebellum as well as basal ganglia structures. It is sandwiched between the structures of the basal ganglia which is a collection of neuronal cell bodies involved in motor function.

Contains a high density of ascending and descending tracts fibres. Small ischaemic lesions or bleeds can cause significant deficits. The volume of damage in the primary motor cortex to give a weak arm and face would be much greater than a small lesion in the posterior limb of the internal capsule. Anatomically it can be said to have four parts. On a horizontal section or axial view on MRI it can be seen to have an almost half X shape.

SectionContents

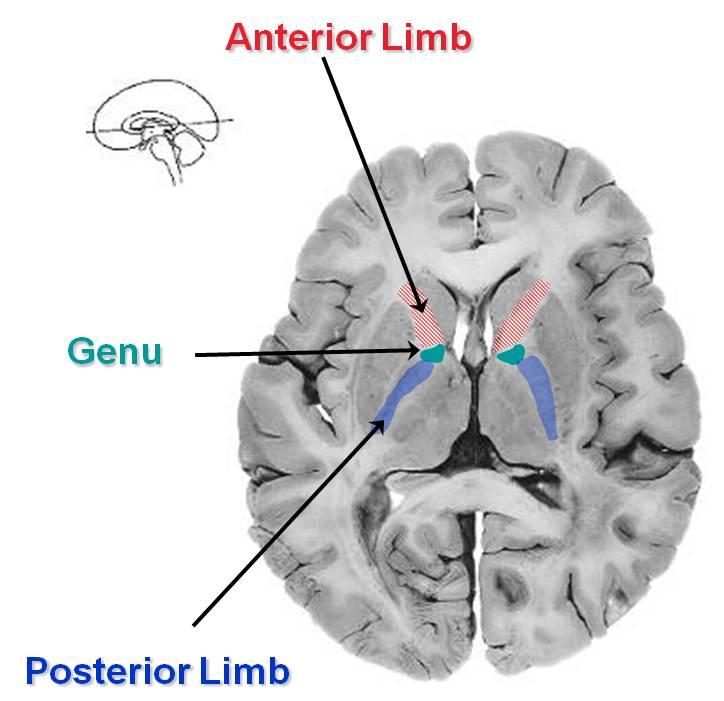

Anterior limblies between lentiform nucleus ( composed of the Globus Pallidus medially and the Putamen laterally) and head of caudate nucleus medially. It contains ascending thalamocortical and descending corticothalamic fibres connecting lateral thalamic nuclei and the cortex. Fibres from cortex to pons also travel within the anterior limb. Supplied by medial striate branches of the anterior cerebral artery and lateral striate branches of the middle cerebral artery.
GenuThis the knee or bend in the L shape which points medially. Contains corticobulbar fibres. Supplied by branches of the anterior choroidal artery or direct from internal carotid.
Posterior limbRelations are thalamus medially and lentiform nucleus laterally. Carries the clinically important descending corticobulbar and corticospinal tract from the precentral gyrus. Also carries ascending 3rd order sensory fibres from the thalamus to the post central gyrus. Supplied by anterior choroidal and lenticulostriate arteries.
RetrolentiformArea where it extends past the lentiform nucleus. May contain some visual radiations and auditory fibres.

Vascular supply to the internal capsule is by small right angled penetrating arteries of the MCA called the lateral striate (lenticulostriate) arteries and the more anterior aspects including anterior limb by branches of the anterior choroidal artery (a branch of the ICA).

Basal ganglia

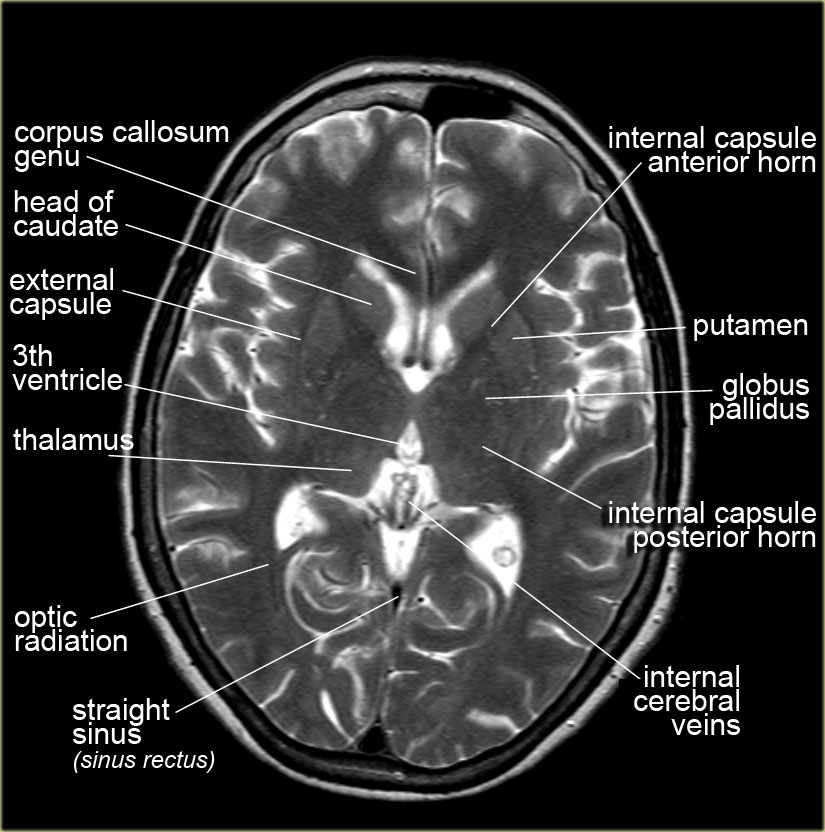

The basal ganglia is a collection of interconnected nuclei (neuronal cell bodies) lying deep below the cortex. It is composed of the following structures. The putamen (laterally) and globus pallidus (medially) form the lenticular or lentiform nucleus (lens shaped). The caudate and putamen are also called the neostriatum. Grey matter strands cross the internal capsule to connect these structures and so gives the area the name of the corpus striatum. The putamen is the larger ovoid mass which lies laterally with its lateral side separated very slightly from insular cortex and the external capsule and claustrum. Medially attached to the Globus Pallidus. The Globus Pallidus is smaller triangular shaped structure and lies medially with its medial relation being the internal capsule. The globus pallidus is a major source of output from the basal ganglia. It is divided by a lamina into Globus pallidus externa and interna.

The caudate nucleus is a large mass of grey cells making up a head, body and tail. Anteriorly seen on scans at the lateral border of the anterior horn of the lateral ventricle. It lies then on the lateral wall of the ventricle and there is a tail which passes to form the roof of the inferior temporal horn of the ventricle. The internal capsule separates it from the putamen. The caudate is notable as being diminished in size in Huntington's chorea. The caudate and putamen receive stimulatory input from the cerebral cortex mediated (Glutamate) and from the substantia nigra (Dopamine). The caudate/putamen gives inhibitory output (GABA) to the Globus pallidus and substantia nigra. The Globus pallidus and Substantia nigra also send inhibitory signals to the ventral thalamic nucleus of the thalamus (GABA) which in turn feeds to the cortex (glutamate). The Basal ganglia is concerned with movements of the contralateral limbs and it would seem that it stimulates and inhibits various regions thus modulating motor output. All of these structures are prone to lacunar infarcts and deep haemorrhage

Subthalamic nuclei

This is part of the basal ganglia. Damage here can lead to dyskinesias and hemiballismus and associated motor disorders.

Thalamus

This is the largest mass of cell bodies within the nervous system. The thalamus may be affected by both haemorrhage and infarction involving the posterior cerebral artery and its branches. It is a large paired egg shaped structures sitting opposite each other across 3rd ventricle. Contains discrete collections of neuronal cell bodies called nuclei. Separated by a y shaped internal lamina. All but the reticular nucleus send fibres to the cortex. Receives all sensory stimuli (except olfactory) including from the cerebellum, spinal cord and cranial nerves. Bilateral thalamic strokes can cause amnesia as well as hypersomnolesence. Others cause hemisensory loss. Thalamic damage can also lead to so called thalamic pain syndromes where patients experience severe often sharp neuropathic pain in the corresponding contralateral side and it is notoriously hard to treat satisfactorily and causes much morbidity. It contains several discrete thalamic nuclei

  • Medial dorsal thalamus
  • Anterior thalamus
  • Back of thalamus
    • Lateral Geniculate body: Fibres from the optic tracts
    • Medial Geniculate body: fibres from inferior colliculus
  • lateral thalamus
    • Dorsal nucleus
    • Ventral nucleus

Brainstem (Rhomboencephalon)

LocationMedialLateral
Midbrain
  • Oculomotor nerve nuclei dorsally
  • Trochlear nerve nuclei dorsally
  • Corticospinal/bulbar tracts ventrally
Pons
  • Medial longitudinal fasciculus
  • Medial lemniscus (carries contralateral dorsal column)
  • VI (Abducent) nerve nucleus and fibres
  • VII (Facial) (fibres closely associated with VI)
  • Corticospinal tract
  • Facial nucleus VII and nerve fibres
  • Spinal nucleus and tracts of V
  • Lateral spinothalamic tract (spinal lemniscus)
Medulla
  • Hypoglossal nerve nucleus controls tongue muscles.
  • Medial lemniscus with crossed fibres from the dorsal column (gracile and cuneate nuclei) on the way to the ipsilateral thalamus
  • Pyramids lie on either side of the midline on the ventral surface and contain the corticospinal motor tracts which are decussating.
  • Nucleus ambiguus : Efferents to IX and X and XI. Concerned with swallowing.
  • Descending nucleus of V: carries pain and temperature from face.
  • Dorsal motor nucleus of X : preganglionic parasympathetic to IX and X. Supplies heart, lungs and abdominal organs.
  • Nucleus solitarus : Input from VII, IX and X. Partly gustatory nucleus concerned with taste. Fibres pass to venteroposteromedial nucleus of thalamus.
  • Inferior olivary nucleus which sends fibres to the cerebellum
  • Vestibular nuclei : four of these lie in floor of the IVth ventricle.
  • Cochlear nuclei : closely associated with vestibular nuclei
  • Inferior cerebellar peduncle with dorsal spinocerebellar, olivocerebellar and cuneocerebellar tracts
  • Spinothalamic tract (spinal lemniscus)
  • Spinal nucleus of V: Fibres concerned with touch, pain and temperature from the face goes to the spinal nucleus of V. Descend from pons down to the medulla.
  • Descending sympathetic fibres

Pons

The Pons has a distinct bulbous appearance on cross section due to large axonal bundles of cell groups which pass through it with descending motor fibres and ascending sensory modalities. There are also groups of fibres running transversely between large pontine nuclei and the cerebellum. Cranial nerves also exit. Laterally lies the bulging middle cerebellar peduncle. The pontine nuclei mediate fibres coming from cerebral cortex to the cerebellum. The VI, VII, VIII and V nerves all leave ventrally. As its name suggests it is bridge like and like any bridge it is a major crossover centre for fibres carrying signals bidirectionally from above and below and communication with the cerebellum. Like any bridge it covers the CSF filled 4th ventricle which separates it from the cerebellum with its vermis and hemispheres which sit tightly behind. It is indeed a bridge over water.

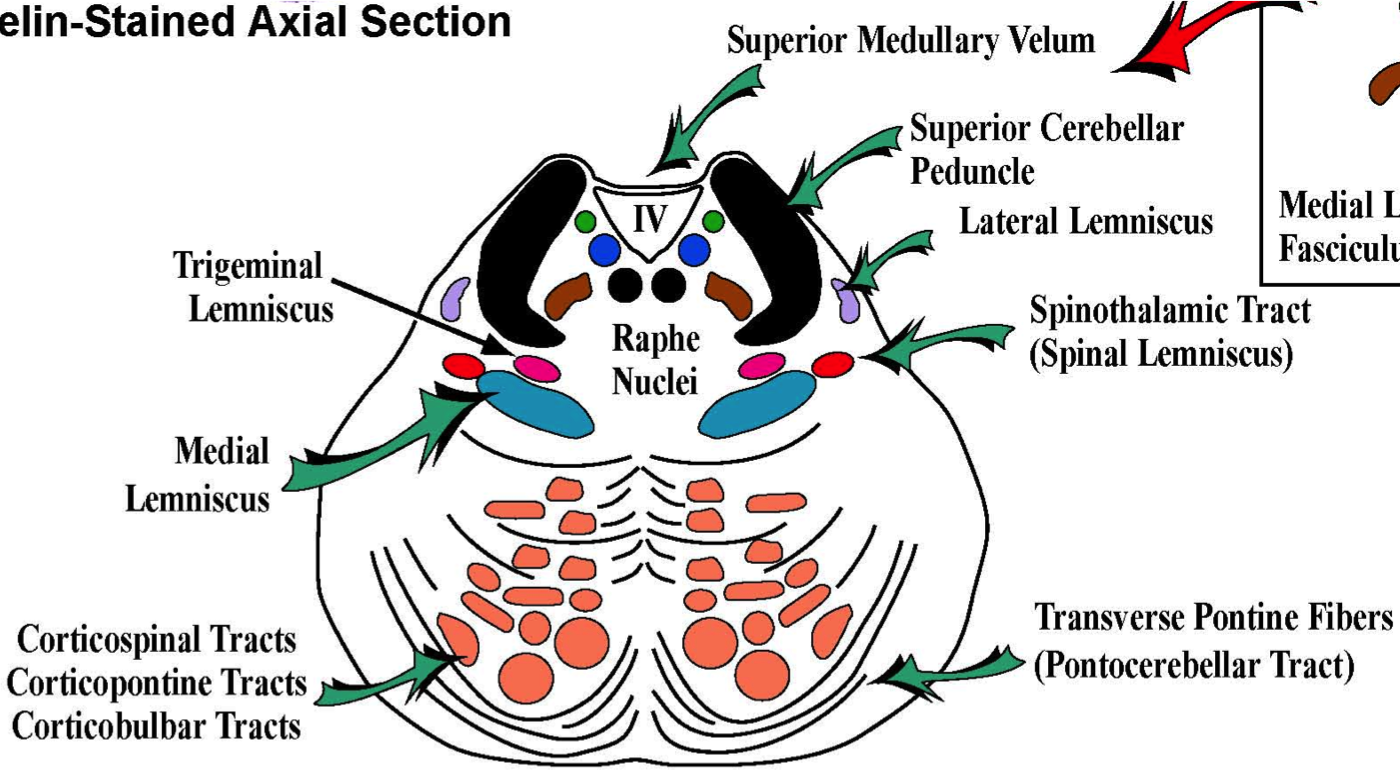

The Pons contains the Corticospinal fibres, Corticopontine fibres, Pontocerebellar fibres and Raphe nuclei. The lower Pons contains the Nucleus of VI, Nuclei of VII, Facial nerve, Superior salivatory Gustatory. The facial nerve and abducent nerve are closely associated as the exiting VII nerve loops around the nucleus of VI. Also contained is the Medial lemniscus (carries contralateral dorsal column), Spinothalamic tract (carries pain and temperature) and Middle cerebellar peduncle which contains fibres from c/L pons to cerebellum.

Vascular supply is from the basilar artery which lies anteriorly and provides median and paramedian perforators. Short circumferential branches irrigate more laterally and laterally including the middle cerebral peduncle is supplied by branches of the superior cerebellar and anterior inferior cerebellar arteries.

Medulla

The medulla contains a host of nuclei all tied up with fairly primitive functions such as cardiorespiratory, vomiting centres etc. It also contains the reticular activating system. Medially to the olive and near the midline is the medial lemniscus that carries dorsal column sensation to the thalamus. Vascular supply is by branches of the vertebral artery including the posterior inferior cerebellar artery. PIC as we know classically irrigates lateral medulla. Anteriorly there are median and paramedian perforators from the vertebrals. Lateral medullary syndrome is more commonly due to vertebral occlusion than PICA occlusion of itself.

Cerebellum

Introduction

The cerebellum contains as many neurons as the entire cerebrum. Its primary role is the coordinating motor function with other parts of the brain. It is composed of a core of white matter surrounded by grey matter. The cerebellum also consists of a cortex covered in grey matter folded into folia with deep fissures. Anatomically it is closely related to the IVth ventricle and contains 4 deep nuclei called the dentate, emboliform, globose and fastigial. The cerebellum receives sensory input as well as input from the motor and premotor cortex and returns feedback to these same centres. As such the cerebellar hemispheres deal with ipsilateral movement and function. Cerebellar hemispheres communicate via inferior, middle and superior cerebellar peduncles. Inferiorly lie the cerebellar tonsils which are important in Arnold-Chiari malformations. The cerebellum is separated from the pons by the fourth ventricle. Histologically the important functional cell is the Purkinje cell which lies between the molecular and deep granular layer of cells. The purkinje cells communicate with the deep cerebellar nuclei.

The cerebellum is composed of a midline vermis and two lateral cerebellar hemispheres. It is composed of anterior and posterior lobes and flocculonodular lobe. The vermis is concerned with midline and truncal position and receives input from the spinal cord. Dysfunction is noted by postural instability and gait ataxia. Processing occurs in the cerebellar hemisphere and output is via the superior cerebellar peduncle which decussates in the midbrain and whose fibres pass to the motor nuclei of the thalamus and from there back to the motor and premotor cortex.

Cerebellar peduncles

The cerebellum attaches to the posterior aspect of the brainstem by 3 large tracts, the superior, middle and inferior cerebellar peduncles. Do not confuse these with the cerebral peduncle.

  • Superior cerebellar peduncle (brachium conjunctivum) contains efferent fibres from the cerebellum to other centres.
  • Middle cerebellar peduncle (brachium pontis) has afferent fibres from the cerebral cortex. The cerebellar hemispheres receive input from the contralateral motor and premotor cortices by fibres which have decussated in the pons and enter the cerebellum via the middle cerebellar peduncle. The middle peduncle brings input from pontine nuclei.
  • Inferior cerebellar peduncle receives input from the spinal cord.
  • Vascular (Arterial and Venous) Anatomy

    Vascular supply to the heart commences within the chambers of the heart. The Left atrium blood fills the Left ventricle during diastole and during systole is ejected across the aortic valve and into the aortic arch.

    • Innominate artery
      • Right common carotid → Right internal carotid 2/3rds of supply
      • Right Subclavian atery → Right Vertebral artery 1/3rd of supply
    • Left common carotid
      • Left internal carotid 2/3rds of supply
      • Left external carotid - does not supply brain except through collaterals
    • Left Subclavian → Left Vertebral artery → Basilar artery → Posterior cerebral artery
  • Almost all arteries are paired except for the basilar artery and the anterior communicating
  • A patent foramen ovale or ASD or any right to left shunt can allow clot to pass from the deep veins of the legs to the left atrium and then into the systemic circulation

Anterior circulation

  • Internal Carotid artery
    • Cervical segment - within the neck. Associated with sympathetic supply.
    • Petrous segment - enters skull via foramen lacerum and runs forwards
    • Cavernous segment - enters the cavernous sinus and runs with th VIth nerve and gives off branch superior hypophysial to the posterior pituitary
    • Supraclinoid segment - pierces dura and then splits into anterior cerebral artery and  middle cerebral artery
    • Ophthalmic artery
      • First branch of the ICA and enters the orbit with the optic nerve and gives off a branch the central artery to retina. The artery runs forward to supply the eye and scalp around the eye as well as frontal and ethmoidal sinuses. Maxillary artery anastomoses provides some collateral flow if proximal occlusion. Occlusion of the ophthalmic artery does not tend to cause blindness and as there are collaterals
      • Branches
        • Central artery to the retina: runs along the centre of the optic nerve entering the eye to supply the inner retinal layers. Occlusion will cause monocular blindness
        • Posterior ciliary artery is the main source of blood supply to the optic nerve head (ONH), and it also supplies the choroid up to the equator, the retinal pigment epithelium. The blood supply in the ONH is segmental, so that most of its ischaemic lesions result in sectoral visual field defects. There may be multiple (up to 5) PCAs. Vessel involved in Anterior Ischaemic optic neuropathy and Giant cell arteritis.
    • Posterior communicating artery (PCOMM)
      • Joins anterior and posterior circulations
      • Closely associated with IIIrd nerve which can be compressed by an aneurysm of the PCOMM
      • Irrigates the ventral thalamus, hypothalamus and tail of caudate
    • Anterior choroidal artery
      • Arises from the ICA and Passes posteriorly with branches to supply
        • Posterior limb of internal capsule
        • choroid plexus of lateral ventricle
        • optic tract and lateral geniculate body (hemianopia)
        • area of midbrain and globus pallidus and substantia nigra
    • Anterior cerebral artery (Medial surface of cerebrum. Arches up and around and back over the corpus callosum)
      • A1 Segment - from the bifurcation of the internal carotid to the anterior comm artery. Branches include
        • Medial lenticulostriate artery : contributes to anteroinferior part including the anterior limb of internal capsule and anterior portion of caudate and putamen
        • Anterior communicating artery connects both ACA and is a common site of aneurysms
        • Recurrent artery of Heubner supplies head of caudate and  anteroinferior internal capsule
      • A2 Pericallosal branch - is the continuation of A1 supplying medial surface of cerebral cortex and corpus callosum after the Anterior communicating branch
        • Orbitofrontal
        • Polar frontal
        • Callosomarginal
    • Middle cerebral artery
      • M1 segment from the bifurcation of the internal carotid passes laterally to the surface of the insula where it bifurcates.
        • Occlusion here may result in massive infarction depending on collateral supply and whether it is proximal or distal to lenticulostriate vessels.
        • A clot may be seen in the artery "the hyperdense MCA sign" in which a string of thrombus may be seen within the M1 on Non contrast CT
        • Lateral lenticulostriate arteries (Deep penetrating vessels)
          • Branch of at right angles to supply the Globus pallidus and putamen, posterior limb of internal capsule, head and tail of caudate, thalamus and Meyer's loop which includes some of the optic radiations can be caught
          • Arterial occlusion typically may cause lacunar type strokes and vulnerable to lipohyalinosis and occlusion
        • M2 segment within the sylvian fissure and branch. A clot here may result in a "dot"sign on CT. The artery branches into
          • M3 segments Upper division
            • prefrontal (frontal cortex)
            • precentral (primary motor and associated areas)
            • central (pre/post central gyri)
            • post central (primary sensory area)
            • parietal (posterior parietal)
          • M3 segments Lower division
            • middle temporal (mid temporal cortex)
            • temporoccipital (temporal and occipital cortex)
            • angular (angular and associated gyri)
            • R/L Subclavian artery

Posterior circulation - Vertebrobasilar system

  • Vertebral artery - 1st branches of the subclavian arteries on either side then enter the transverse process at (C6) and ascends through the foramina in the transverse processes of the upper six cervical vertebrae to C1 where they enter the foramen magnum in front of the the medulla. Inside the the skull, the two vertebral arteries join to form the basilar artery.
    • Posterior inferior cerebellar artery
      • Largest branch of the vertebral and supplies lateral medulla and lateral cerebellum
      • Loops around medulla to the inferior surface of cerebellum.

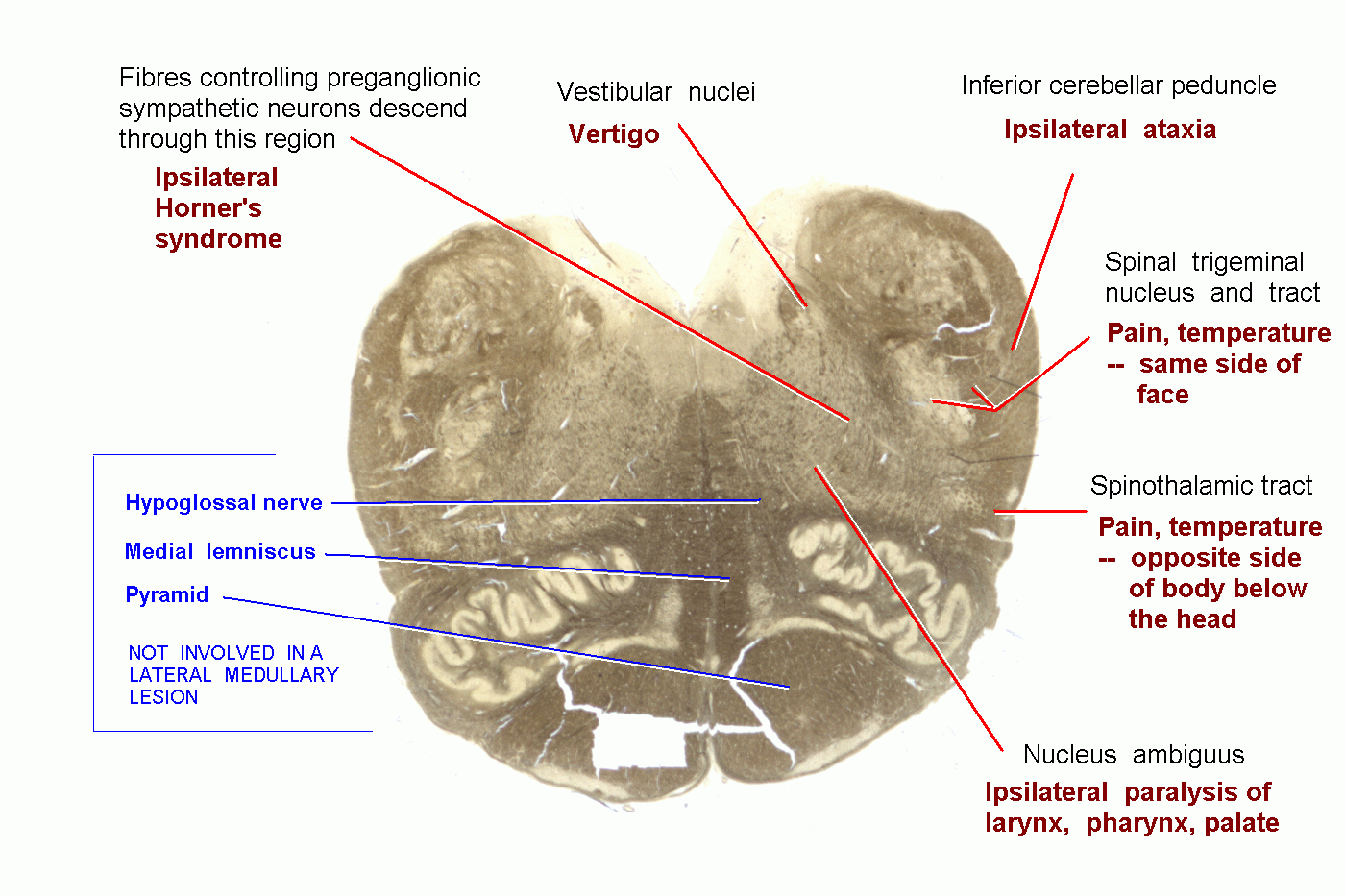

      • Occlusion can cause Wallenburg's/Lateral Medullary syndrome
      • Infarction of Inferior cerebellum, IX,X,XI, Nucleus ambiguus
    • Anterior spinal artery (ventral medulla)
      • Forms at the point where the vertebral arteries fuse
    • Posterior spinal artery (dorsal medulla)
  • Basilar artery forms at the lower border of the pons by fusion of the two vertebral arteries
    • Anterior inferior cerebellar artery supplies lateral pons and antero-inferior cerebellum
    • Superior cerebellar artery - supplies lateral pons and superior surface of cerebellum
    • 12 Pontine arteries penetrate to supply medial pons - are a number of small vessels which come off at right angles from either side of the basilar artery and supply the medial pons through small penetrating branches. brain
    • Internal auditory artery - a long slender branch, arises from near the middle of the artery; it accompanies the acoustic nerve through the internal acoustic meatus, and is distributed to the internal ear
  • Posterior cerebral artery (PCA)(embryologically originate from Internal carotid) passes laterally and is joined by the posterior communicating and then sweeps back around the cerebral peduncle to reach the tentorial surface of the occipital lobe.
    • Postero-medial ganglionic branches arise at the commencement of the posterior cerebral artery and with branches from the post comm artery pierce the posterior perforated substance, and supply the medial surfaces of the thalami and the walls of the third ventricle.
    • Posterior choroidal branches run forward beneath the splenium of the corpus callosum, and supply the tela choroidea of the third ventricle and the choroid plexus
    • Postero-lateral ganglionic branches are small arteries which arise from the posterior cerebral artery after it has turned around the cerebral peduncle; they supply a considerable portion of the thalamus
    • Anterior temporal supplies uncus and the anterior part of the fusiform gyrus
    • Posterior temporal supplies inferior temporal gyri, calcarine, to the cuneus and gyrus lingualis and the back part of the convex surface of the occipital lobe
    • Parietooccipital to the cuneus and the precuneus.

Venous anatomy

Blood is supplied to the brain but blood also needs to be taken away and directed into the internal jugular veins to return to the heart. There are various venous sinuses and veins that funnel blood from the brain. An important pathology in stroke care is acute venous thrombosis. Therefore it is important too be able to recognise normal venous anatomy and variants of it so one can identify likely thrombosis.

  • Superior Sagittal sinus: Venous blood from the brain passes across the subdural space in the bridging veins and emissary veins into the superior sagittal sinus. The sinus also receives CSF through the arachnoid villi.
  • Cavernous sinus: contains various other structures including III, IV and V1, V2 and VI and postganglionic sympathetic fibres and the siphon part of the internal carotid artery
  • Great cerebral vein drains deep cerebral structures into the Straight sinus
  • Ultimately all venous outflow is to the internal jugular vein

Cerebrospinal fluid

CSF is formed from the choroid plexuses in the lateral (70%), third (5%) and fourth (5%) ventricles and ependymal cells(20%) lining the ventricles. The epithelium of the choroid plexus forms a barrier between blood and CSF filtering out various substances. CSF Flow is from the lateral ventricles through the foramen of Munro into the third ventricle and then through the aqueduct of Sylvius into the fourth ventricle. The aqueduct is only 2 mm in diameter and is a common site of CSF flow blockage. From there it drains through one of three foramina either laterally through the foramina of luschka (lateral) or the medially placed foramen of Magendie. CSF then enters the subarachnoid space. It is finally absorbed by the arachnoid villi into the venous sinuses. Obstruction at the level of the aqueduct causes a non communicating hydrocephalus. Obstruction to CSF flow at the level of the arachnoid villi causes a communicating hydrocephalus. Lumbar puncture is not contraindicated, in fact it may be diagnostic as well as therapeutic in those with a communicating hydrocephalus where pressures are freely transmitted through the subarachnoid space. CSF is produced by the action of the Na+/K+ ATPase pump actively moving Na+ ions into the lumen of the ventricles which is then followed by h40. This happens in the cuboidal cell epithelial cells that form the choroid plexus. The choroid plexus releases about 500 mls of CSF per day into a volume of 100-150 ml. The choroid plexus selectively filters the CSF so that its content differs from plasma. CSF has a lower glucose, very much lower protein, low urea and a low amino acids content. CSF protein is 1/1000th that of CSF. CSF means that the brain basically floats such that the effective weight of the brain is reduced from 1400 g to about 50 g. The CSF also plays a role in the continual drainage of the ventricular cavities and subarachnoid space. The CSF is replaced three times per day and enough is produced in 3 days to fill the entire brain free skull volume. It is no surprise that acute hydrocephalus can be an acutely fatal event if unrecognised and untreated.

Membranes

- The brain itself is surrounded by 3 membranes sandwiched between it and the skull periosteum.
  • BRAIN PARENCHYMA
  • Pia: The most closely adherent and inner layer is the pia which is closely related to the surface of the brain sulci and gyri. It is very delicate and vascular covering the brain and spinal cord.
  • Subarachnoid space: Blood vessels lie in this plane and it is the plane of bleeding for berry aneurysms. Terminates at S2 in sacral vertebra
  • Arachnoid: It is separated from the arachnoid by the subarachnoid space. It is delicate but non vascular.
  • Subdural space: traversed by bridging veins which can bleed. Potential space in the spinal cord.
  • Dura: Above this lies the dura mater. Between the arachnoid and dura mater is the subdural space where bleeds due to the shearing of veins may be seen.
  • Extra (Epi)dural space: between the skull and dura lies the extradural space. Contains meningeal arteries and veins. The dura matter is adherent to the skull at areas where bones fuse which limits the spread of blood with extradural haemorrhage. Convex shaped bleeds on CT. In the cord injection of this space may be used to cause anaesthesia.
  • SKULL PERIOSTEUM

Fibrous Membranes

  • Falx cerebri which is a vertical membrane that separates right and left cerebral hemispheres. If there is a rapidly expanding unilateral cerebral space occupying lesion or extra-axial lesion (EDH or SDH) can force the uncus of the temporal lobe under the falx.
  • Falx cerebelli separate the right and left lobes of the cerebellum.
  • Tentorium cerebelli lies between occipital cortex and superior surface of cerebellae. This helps enclose the cerebellum within the bony and membrane bound posterior fossa where for example a large cerebellar haematoma needs evacuation before it can cause an acute rise in pressure compressing the brainstem or causing hydrocephalus.

Herniation syndromes

Seen in the context of rising ICP in the comatose patient. These are all neurosurgical emergencies and demand rapid escalation.

  • Subfalcine: the brain is pushed under the falx separating right and left cortices. There may be compression and stroke involving the anterior cerebral artery with contralateral leg weakness. The lateral ventricles and brain midline will be distorted and shifted and can be seen on CT.
  • Transtentorial: A supratentorial mass or pressure gradient forces the uncus of the temporal lobe down beneath the tentorium 'tent' can result in an ipsilateral oculomotor paresis (dilated pupil, ptosis, down and out pupil) and compression of the posterior cerebral artery giving contralateral hemianopia. The shift forces the opposing cerebral peduncle against the edge of the tentorium causing contralateral hemiparesis to the peduncle. The indentation of the tentorium edge causes kernohan's notch on the opposite cerebral peduncle. This is a false localising sign.
  • Transforaminal: the brainstem and cerebellar tonsils are forced down into the foramen magnum. Pressure on the medulla leads to apnoea and death

    Next: >> Stroke Neuropathology


Top of Page
